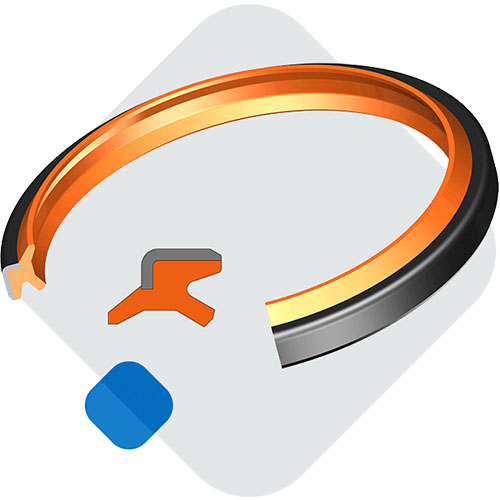

864

Penjual : Rumah Seal

The Hallite 864 is a double-lipped, metal-cased wiper is designed to press fit into open groove housings of popular Asian housing sizes for a wide range of applications and for use with venting U-rings, such as the Hallite 663 or Hallite 673 rod seal.

The polyurethane wiping element is bonded to a nitrided metal case eliminating the potential for rust. The polyurethane wiping element has a precision trimmed sealing lip to collect the fluid passing the rod seal and a specially wiping lip is textured to provide improved dry rod performance, particularly for long stroking cylinder applications.

The proportions of the polyurethane wiping lip follow the side movement of the rod to clear away heavily deposited dirt and make this wiper an excellent choice for dirty conditions.

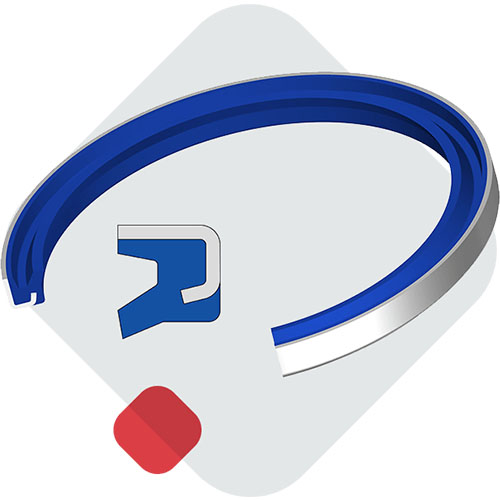

862

Penjual : Rumah Seal

Hallite 862 single-lipped, metal-cased wiper is designed to press fit into open groove housings for a wide range of applications.

The precision trimmed polyurethane wiping element is securely bonded to a metal case treated to inhibit rust. The proportions of the polyurethane wiping lip follow the side movement of the rod to clear away heavily deposited dirt and make this wiper an excellent choice for dirty conditions.

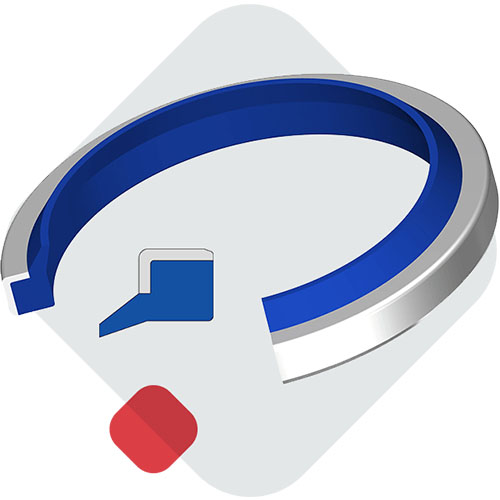

860

Penjual : Rumah Seal

The Hallite 860 single-lipped, metal-cased wiper is designed to press fit into open groove housings for a wide range of applications.

The precision trimmed polyurethane wiping element is securely bonded to a metal case treated to inhibit rust. The proportions of the polyurethane wiping lip follow the side movement of the rod to clear away heavily deposited dirt and make this wiper an excellent choice for dirty conditions.

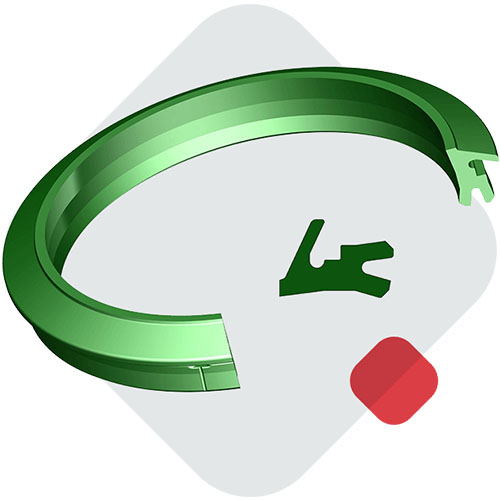

847

Penjual : Rumah Seal

The Hallite 847 wiper has been specifically developed for cylinders used in demanding, heavy-duty off-highway applications in dirty environments, such as earth-moving excavators. This double-lipped wiper incorporates a special venting feature to permanently relieve pressure build-up between the rod seal and wiper. This prevents pressure from ejecting the wiper without the need for an expensive vent hole in the gland.

The flap on the wiping lip is another special feature that covers the gland housing and prevents the water/slurry trap that is common with conventional wipers. The design minimises oil transfer out of the ram on the rod and prevents dirt, contamination, and moisture from entering the cylinder through the gland.

The standard range is made from high-performance Hythane® 371 polyurethane. The wiper is also available in other polyurethane grades, if required, potentially extending the operating conditions.

846

Penjual : Rumah Seal

The Hallite 846 double-lipped, snap-in rod wiper is developed specifically for cylinders applications on mechanical handling equipment, particularly those with long stroke, and designed for use with venting U-rings, such as the Hallite 663 or Hallite 673 rod seal. The design minimises the oil transfer out of the ram on the cylinder rod by collecting traces of fluid passing the rod seal.

The unique feature of the Hallite 846 is the Umbrella Wiper Technology, which is a protective debris guard flap on the wiping lip that entirely covers the gland housing and prevents the water/slurry trap that is common with conventional wipers. This feature offers added protection to the integrity of the hydraulic system by reducing corrosion and preventing the ingress of contamination into the wiper housing groove and hydraulic cylinder gland which will result in increased system life.

Another special feature of the Hallite 846 wiper design is the thin membranes which burst when excessive fluid pressure is trapped between the wiper and the rod seal. This prevents pressure from ejecting the wiper out of its housing. After release of this pressure, the membranes close to protect against contamination from the outside without the need for an expensive vent hole in the gland.

The Hallite 846 is moulded in Hythane® 181, Hallite’s high-performance polyurethane, for easy installation and excellent low temperature performance and has a textured wiping lip to provide improved dry rod performance, particularly for long stroking cylinder applications.

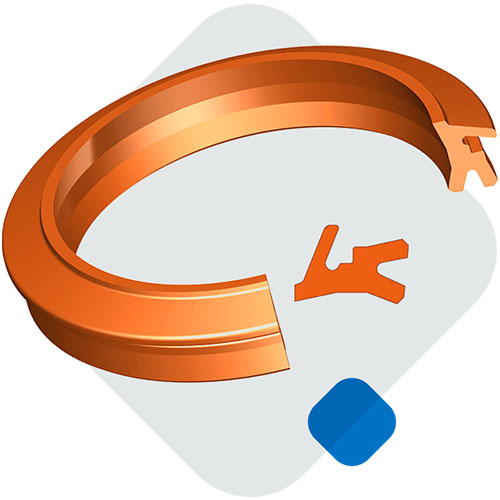

844

Penjual : Rumah Seal

The design of the Hallite 844 double-lipped, snap-in rod wiper minimises the oil transfer out of the ram on the cylinder rod by collecting traces of fluid passing the rod seal.

The Umbrella Wiper Technology™, a unique feature, is a protective debris guard flap on the wiping lip that entirely covers the gland housing and prevents the water/slurry trap that is common with conventional wipers. This feature offers added protection to the integrity of the hydraulic system by reducing corrosion and preventing the ingress of contamination into the wiper housing groove and hydraulic cylinder gland which will result in increased system life.

The standard Hallite 844 is moulded in Hythane® 361, Hallite’s high-performance polyurethane, for excellent durability in service. Some sizes of the Hallite 844 are offered in a Hythane® 181 polyurethane with a textured wiping lip to provide improved dry rod performance, particularly for long stroking cylinder applications.

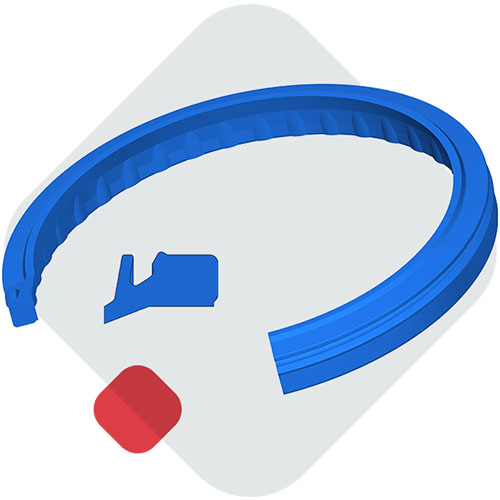

842

Penjual : Rumah Seal

The Hallite 842 single-lipped, snap-in rod wiper is developed specifically for use in harsher environments with heavy contamination, such as in agriculture, off-highway, forestry, and long wall mining equipment.

The unique feature of the Hallite 842 is the Umbrella Wiper Technology™, which is a protective debris guard flap on the wiping lip that entirely covers the gland housing and prevents the water/slurry trap that is common with conventional wipers. This feature offers added protection to the integrity of the hydraulic system, providing increased system life by reducing corrosion and preventing the ingress of contamination into the wiper housing groove and hydraulic cylinder gland.

The moulded ribs on the internal diameter provide extra stability to the wiper and help prevent the possibility of blow-out due to pressure trapping between the wiper and the main rod seal.

839N

Penjual : Rumah Seal

The Hallite 839N double-lipped, snap-in wiper is designed to fit popular Asian housing sizes, and to exclude dirt and moisture from entering the cylinder. The design minimises the oil transfer out of the ram on the cylinder rod by collecting traces of fluid passing the rod seal.

The wiping lip on the Hallite 839N is textured to provide improved dry rod performance, particularly for long stroking cylinder applications. Opposite the wiper lip are two sealing lips that are precision trimmed at an angle to give optimal rod sealing performance. The Hallite 839N is designed to have an interference in the seal housing groove to improve the stability of the wiper in the gland and to reduce the possibility of ingress around the outside of the wiper.

Hallite recommends a vent is provided between the seal and the wiper to avoid a pressure trap.

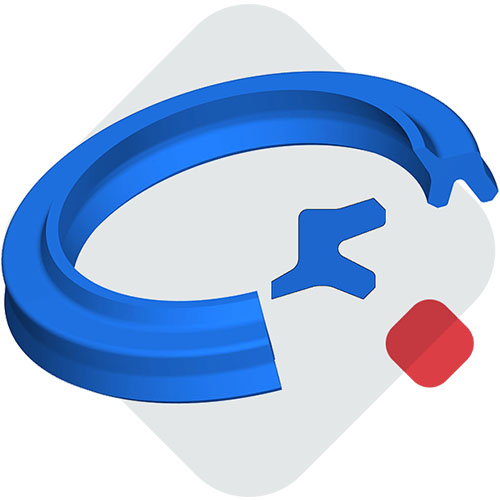

839

Penjual : Rumah Seal

The Hallite 839 double-lipped, snap-in wiper is designed to fit standard housings, including many ISO 6195C sizes, and to exclude dirt and moisture from entering the cylinder. The design minimises the oil transfer out of the ram on the cylinder rod by collecting traces of fluid passing the rod seal.

Opposite the wiper lip are two sealing lips that are precision trimmed at an angle to give optimal rod sealing performance. The Hallite 839 is designed to have an interference in the seal housing groove to improve the stability of the wiper in the gland and to reduce the possibility of ingress around the outside of the wiper.

Hallite recommends a vent is provided between the seal and the wiper to avoid a pressure trap. For customers that require a wiper for heavier duty applications, the Hallite technical team may advise you to use a Hallite 844 wiper instead of the Hallite 839. Contact your local Hallite team for more information.

834

Penjual : Rumah Seal

The Hallite 834 single lipped, snap-in rod wiper is designed to fit standard housing, including many ISO 6195E sizes. The proportions of the wiping lip ensure that contact is maintained with the surface of the rod to remove all deposits of mud and other forms of contamination except for those found in heavy industrial applications.

The moulded ribs on the internal diameter provide extra stability to the wiper and help prevent the possibility of blow-out due to pressure trapping between the wiper and the main rod seal.

The Hallite 834 is precision moulded in Hythane® 181 for maximum wear resistance. For better dry rod performance and protection against moisture ingress, the Hallite technical team may advise you to use a Hallite 846 wiper instead of the Hallite 834.

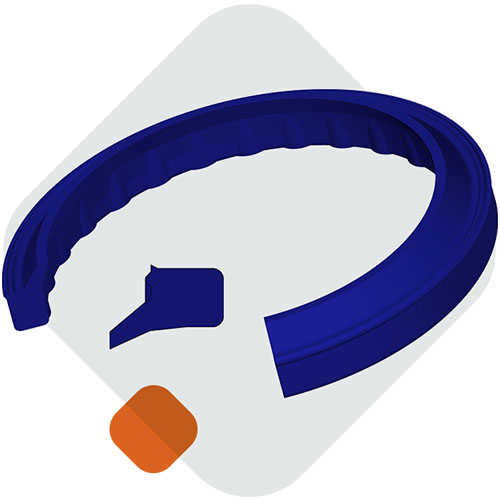

831

Penjual : Rumah Seal

The Hallite 831 single lipped, snap-in rod wiper is designed to fit metric housings and is interchangeable with many common European wiper styles. The proportions of the wiping lip ensure that contact is maintained with the surface of the rod to remove all deposits of mud and other forms of contamination except for those found in heavy-duty industrial applications.

The outside diameter of the seal incorporates a crush lip to provide interference fit with the housing and a face bead to ensure that the crush lip is not trapped in the corner of the housing. These features help prevent contaminant from entering the groove.

The moulded ribs on the internal diameter provide extra stability to the wiper and help prevent the possibility of blow-out due to pressure trapping between the wiper and the main rod seal.

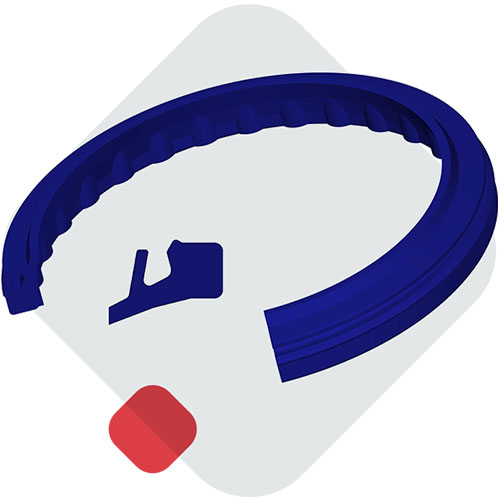

820

Penjual : Rumah Seal

The Hallite 820 single-lipped, snap-in rod wiper is designed to fit North American D-style housings and has been developed specifically for use in harsher environments with heavy contamination, such as in agriculture, off-highway, and forestry equipment.

The unique feature of the Hallite 820 is the Umbrella Wiper Technology™, which is a protective debris guard flap on the wiping lip that entirely covers the gland housing and prevents the water/slurry trap that is common with conventional wipers. This feature offers added protection to the integrity of the hydraulic system by reducing corrosion and preventing the ingress of contamination into the wiper housing groove and hydraulic cylinder gland which will result in increased system life.

The moulded ribs on the internal diameter provide extra stability to the wiper and help prevent the possibility of blow-out due to pressure trapping between the wiper and the main rod seal. Another advantage of the Hallite 820 is that it is easy to install without the use of special tooling, as is the case of the metal press-in wipers normally specified for harsh environments.

The Hallite 820 is also offered in a number of other high-performance polyurethanes, such as Hythane® 361 and the Hythane® 371, a very aggressive scraping material with proven track record in forestry, mining, and aggregate industries.

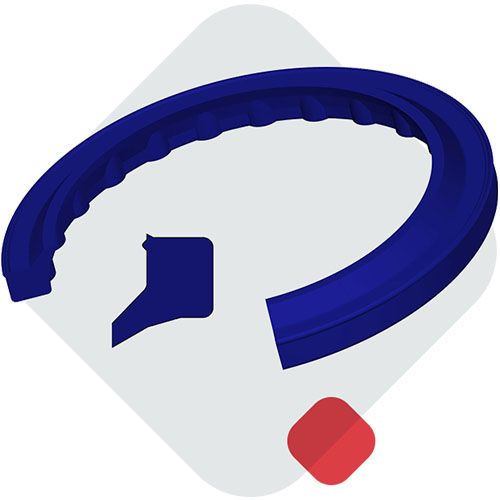

521

Penjual : Rumah Seal

The Hallite 521 snap-in rod wiper is designed for light-duty applications and to fit typical AN housings. The proportions of the wiping lip ensure that contact is maintained with the surface of the rod to remove contaminants.

520

Penjual : Rumah Seal

The proportions of the Hallite 520 wiping lip ensure that contact is maintained with the surface of the rod to remove heavily deposited containments such as mud and ice.

The outside diameter of the wiper incorporates a crush lip to provide an interference fit with the housing and a face bead to ensure that the crush lip is not trapped in the corner of the housing. These features help prevent contamination from entering the groove.

The moulded ribs on the internal diameter provide extra stability to the wiper and help prevent the possibility of blow-out due to pressure trapping between the wiper and the main rod seal.

The standard Hallite 520 is moulded in polyurethane for maximum wear resistance and performance. For heavy duty and more complex applications, it is also offered in a wide range of Hythane® polyurethane and polyester materials to provide the best ingression protection.

In harsher environments with heavy contamination, the Hallite technical team may advise you to use a Hallite 820 wiper for better debris ingress protection.

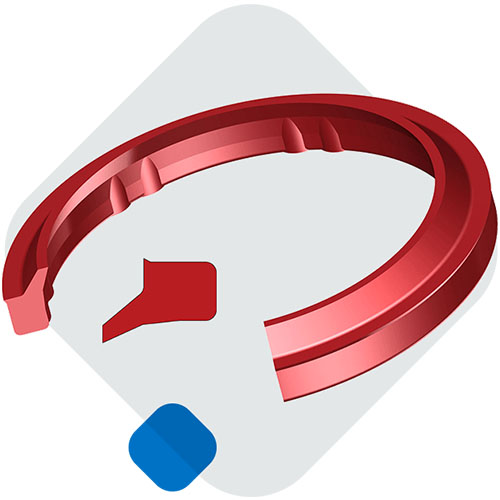

38

Penjual : Rumah Seal

The Hallite 38 single-lipped wiper/scraper is designed to fit metric housings including those of ISO 6195A. The proportions of the wiping lip ensure that contact is maintained with the surface of the rod to remove heavily deposited contaminants such as mud and ice.

The outside diameter of the wiper incorporates a crush lip to provide an interference fit with the housing. This feature help prevent contamination from entering the groove.

The Hallite 38 is moulded in a polyester-based material to provide a tough, abrasion resistant wiper for the difficult conditions usually found in mining or earth moving applications.

The complete range can be used with a split housing, and the majority can be installed in a blind housing with care.

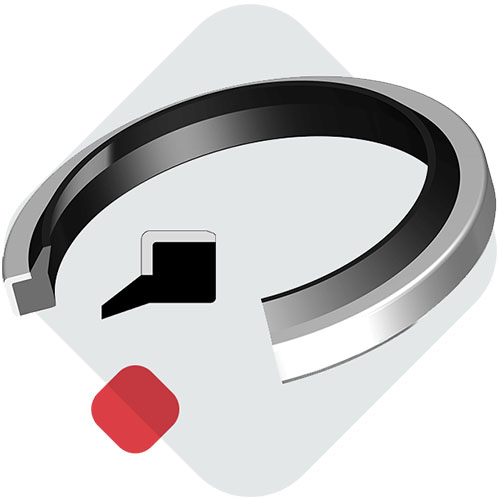

37

Penjual : Rumah Seal

The Hallite 37 single-lipped, metal-cased wiper is designed to press fit into open groove housings for light and medium-duty applications. The precision trimmed nitrile (NBR) wiping element is securely bonded to a metal case treated to inhibit rust. The proportions of the NBR wiping lip follow the side movement of the rod to clear away the deposited dirt.

For heavier duty applications, Hallite would recommend using the Hallite 860 single-lipped, metal-cased polyurethane wiper.

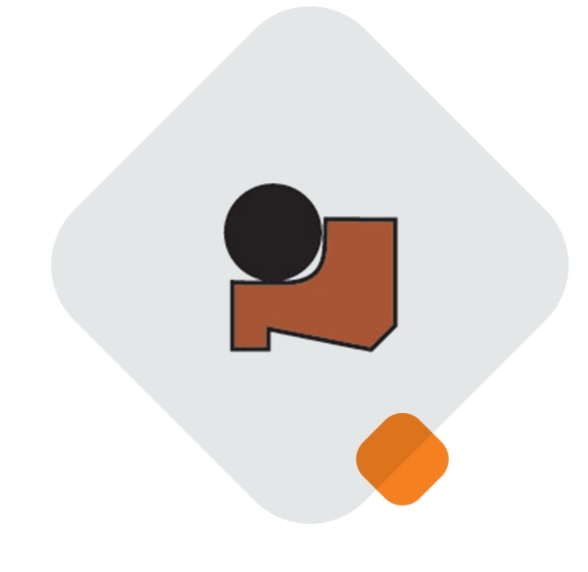

335

Penjual : Rumah Seal

Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

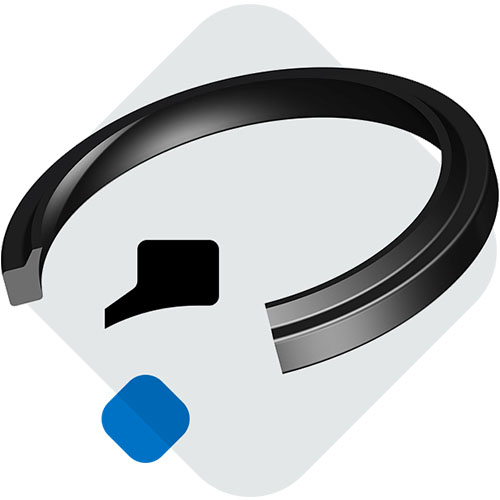

33

Penjual : Rumah Seal

The Hallite 33 wiper has a lip designed to remove lightly adhered dirt from the rod i.e. mud, dust or moisture.

The wiper is manufactured from a hard nitrile rubber suitable for installing in a grooved housing. Rod diameters (d1) of 20mm and below require a two piece housing.

To prevent dirt passing the outside of the wiper and to reduce the pumping action, the outside diameter is an interference fit with the housing. Certain sizes of the standard Hallite 33 metric range are suitable for ISO6195 Housing Type A.
